Swarm delegation

A swarm is a tree of Apps with one root and N children. Children call upstream SaaS on behalf of the parent — every call carries the parent's UCAN as a proof, and scope can only narrow downstream (UCAN attenuation).

How the chain works

Each child UCAN is issued by the parent (parent's aud becomes child's iss). The PDP validates every level on every request:

1. Signature chain from leaf back to root is valid.
2. Each parent's capability set is a strict superset of its child's.
3. The chain depth doesn't exceed NOMOS_MAX_CHAIN_DEPTH (default 8).

If any check fails, the request denies with chain_invalid or chain_too_deep.

Wire format

Three environment variables, orchestrator-agnostic — LangGraph, CrewAI, AutoGen, Claude sub-agents all work without importing the SDK:

NOMOS_PARENT_UCAN_CHAIN='["<rootJWT>","<midJWT>"]'   # JSON array, root-first
NOMOS_PARENT_RECEIPT_ID='evt_…'                     # parent's last allow receipt
NOMOS_SWARM_ID='swm_…'                              # optional grouping
NOMOS_MAX_CHAIN_DEPTH=8                             # default; PDP enforces

For chains that would exceed the env-var size limit (~128KB on Linux), use the file fallback:

NOMOS_PARENT_UCAN_CHAIN_FILE=/tmp/nomos-chain.json

Fork a child (TypeScript)

import { forkChild, createIntentClient } from '@auto-nomos/sdk';
import { mintUcan } from '@auto-nomos/ucan';

const parentChain = readParentChainFromEnv(process.env);
const childUcan = await mintUcan({
  audience: 'did:key:z6Mk…researcher',
  capabilities: [{ with: 'github://acme/app', can: 'repo:read' }],
});

const childChain = forkChild({
  parentChain,
  childUcanJwt: childUcan.jwt,
  parentReceiptId: process.env.NOMOS_PARENT_RECEIPT_ID,
  swarmId: process.env.NOMOS_SWARM_ID,
});

spawn('node', ['./researcher.js'], {
  env: {
    ...process.env,
    NOMOS_PARENT_UCAN_CHAIN: JSON.stringify(childChain.chain),
    NOMOS_PARENT_RECEIPT_ID: childChain.parentReceiptId ?? '',
    NOMOS_SWARM_ID: childChain.swarmId ?? '',
  },
});

Fork a child (Python)

from nomos import fork_child, read_parent_chain_from_env

parent = read_parent_chain_from_env(os.environ)
child = fork_child(
    parent_chain=parent.chain,
    audience_did="did:key:z6Mk…researcher",
    capabilities=[{"with":"github://acme/app","can":"repo:read"}],
)

env = {
    **os.environ,
    "NOMOS_PARENT_UCAN_CHAIN": json.dumps(child["chain"]),
    "NOMOS_PARENT_RECEIPT_ID": child.get("parentReceiptId",""),
    "NOMOS_SWARM_ID": child.get("swarmId",""),
}
subprocess.Popen(["python","./researcher.py"], env=env)

Cedar fragments for swarms

The swarm-safe schema-pack ships four templates that read chain attributes delegationDepth, rootAgent, invokedBy:

// 1. cap chain depth
forbid ( principal, action, resource )
  when { principal.delegationDepth > 3 };

// 2. pin root agent (lock a swarm to one owner)
forbid ( principal, action, resource )
  unless { principal.rootAgent == "did:key:z6Mk…planner" };

// 3. block tainted ancestors
forbid ( principal, action, resource )
  when { principal.invokedBy.contains("did:key:z6Mk…quarantined") };

// 4. require direct call for the most sensitive actions
forbid ( principal, action == Action::"/github/repo/put_file", resource )
  when { principal.delegationDepth > 0 };

Swarm view

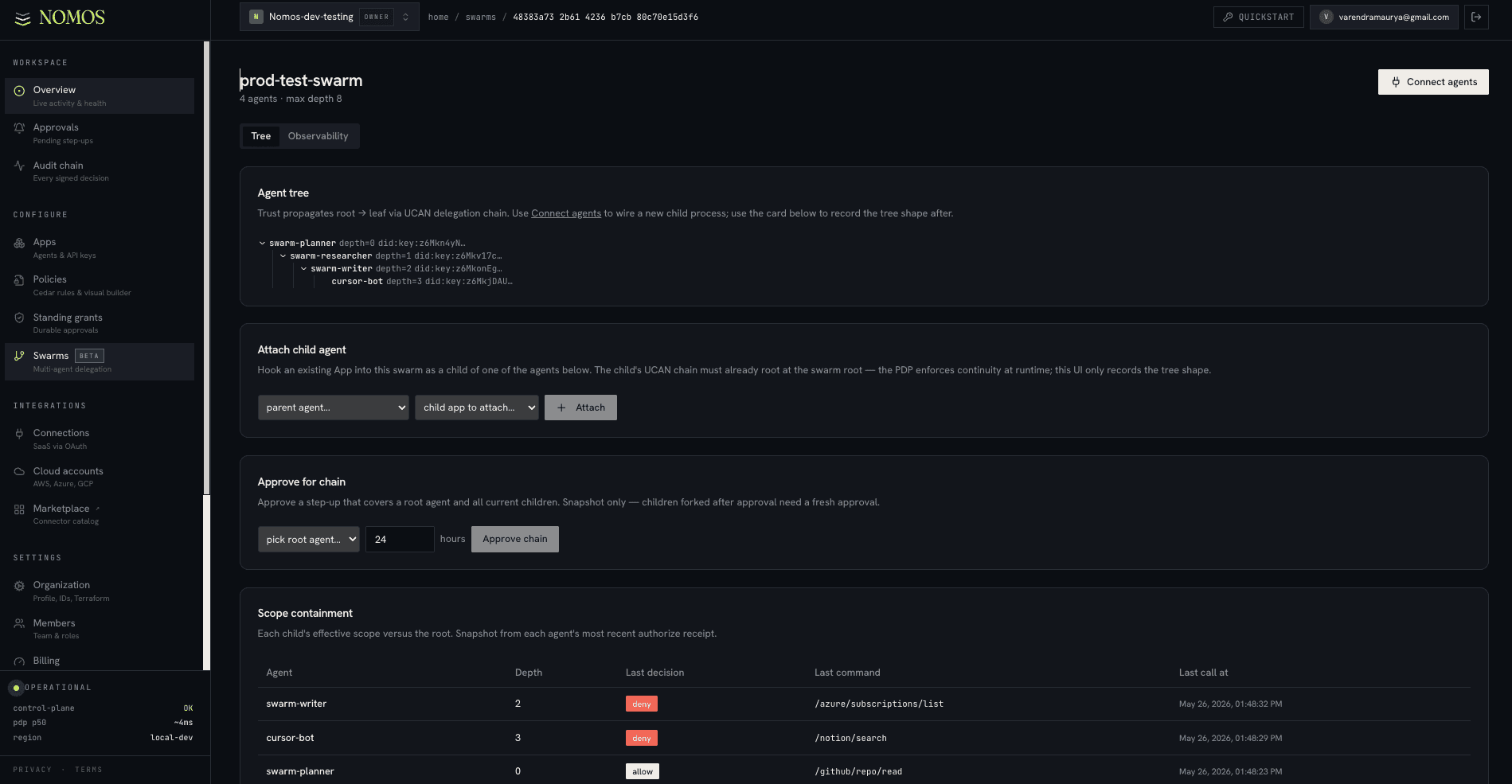

Swarms renders the tree:

• Agent tree — parent/child DAG built from agents.parentAgentId.
• Attach child agent — metadata only; the runtime UCAN chain must validate independently.
• Approve for chain — snapshot approval: covers the current set of agents in the tree. Children forked after approval are NOT covered.
• Scope containment — per-agent quick check (last decision, depth, last command).
• Recent receipts — last 100 authorize calls scoped to this swarm.

Observability — track what the swarm actually did

The swarm's Observability tab is the governance view: every tool call any agent in the chain made, who made it, what it cost, and whether it was allowed — reconstructed from signed receipts, not app logs.

Action graph

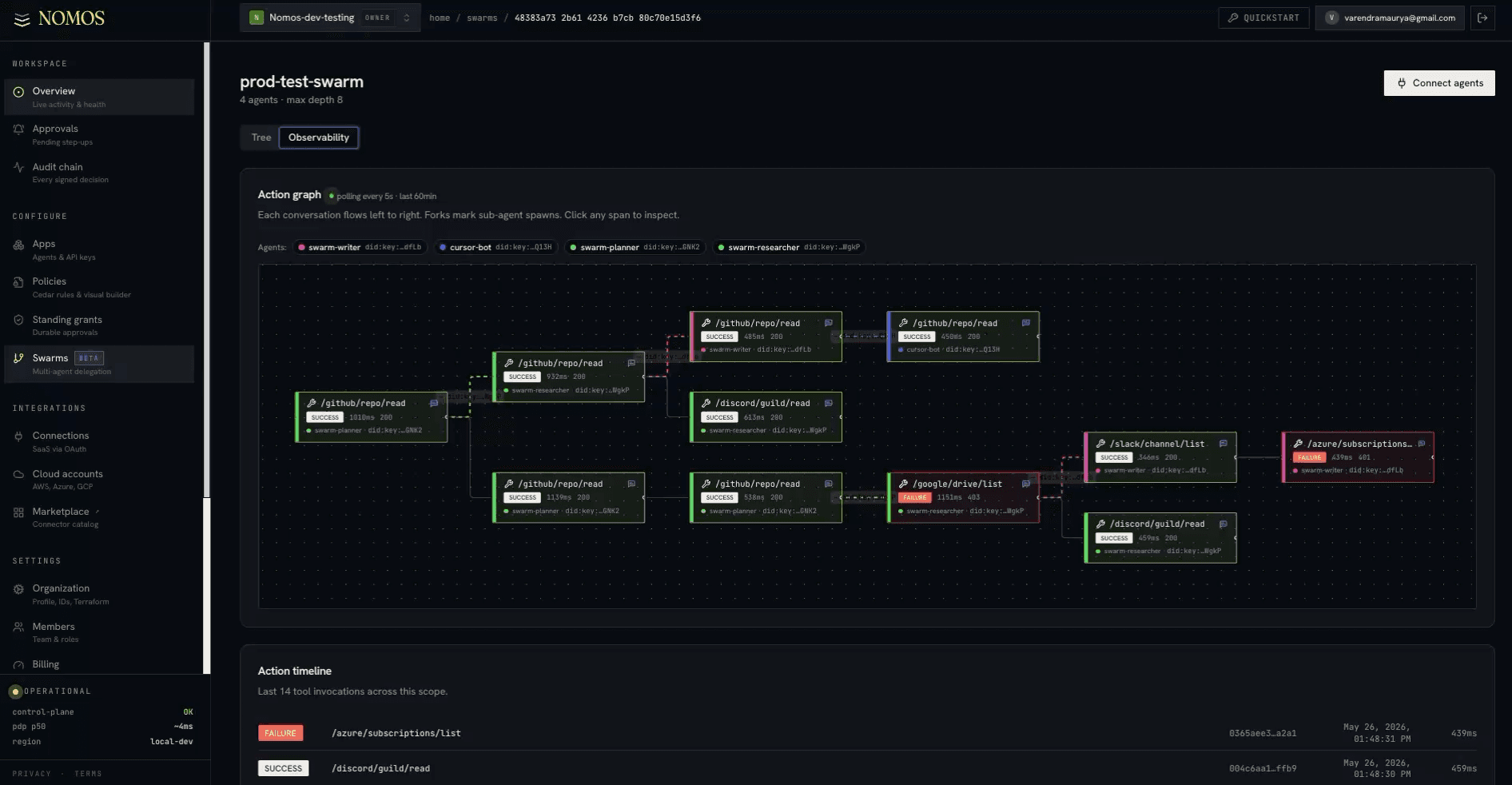

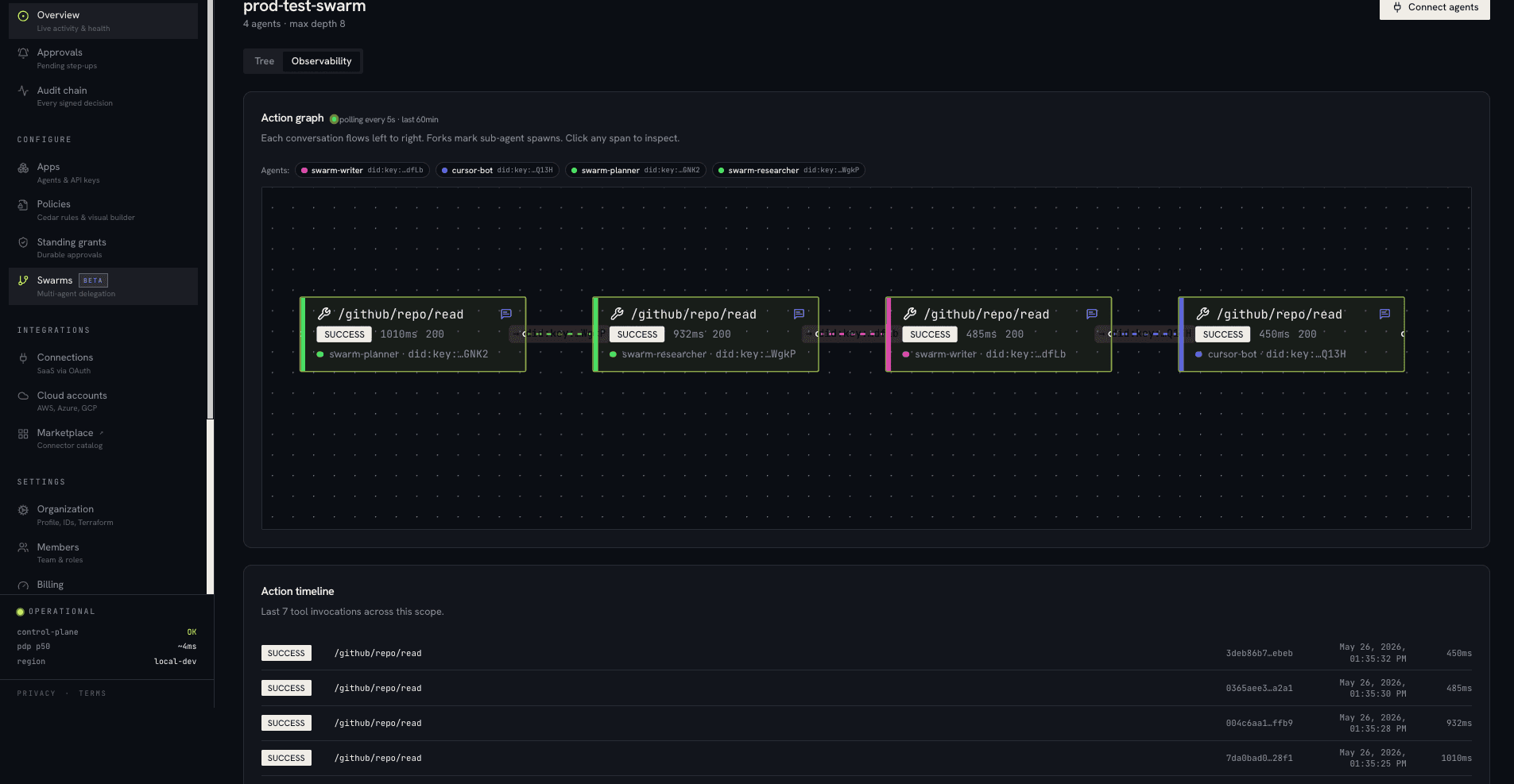

Each conversation flows left to right; a fork marks a sub-agent spawn. Spans are colored per agent (the legend at the top maps each agent's DID to a color), and every span shows its command, status, HTTP code, and latency. The graph polls every 5s over the last 60 minutes. Failures stand out in red — here a /google/drive/list 403 and an /azure/subscriptions/list 401 surfaced inline, so a denied or errored call in a deep chain is visible without grepping logs.

Span detail

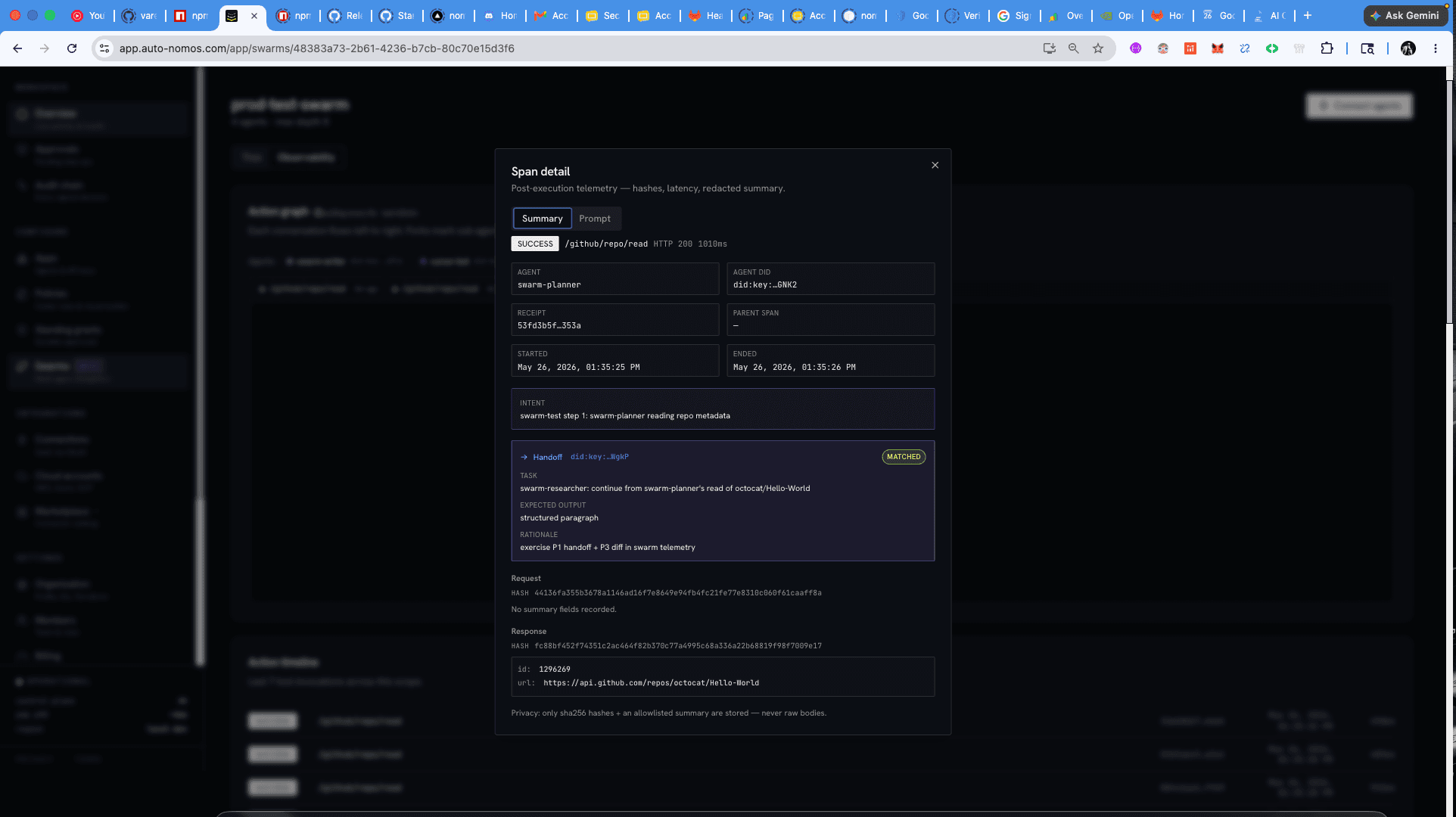

Click any span for the Span detail drawer — post-execution telemetry, not the raw payload. The Summary tab shows the agent + DID, the receipt id, the parent span, start/end, the declared intent, and — for delegations — the Handoff block (MATCHED when the child's task lines up with the parent's), including the task, expected output, and rationale. The request and response are stored as sha256 hashes plus an allowlisted summary.

Prompt capture + PII redaction

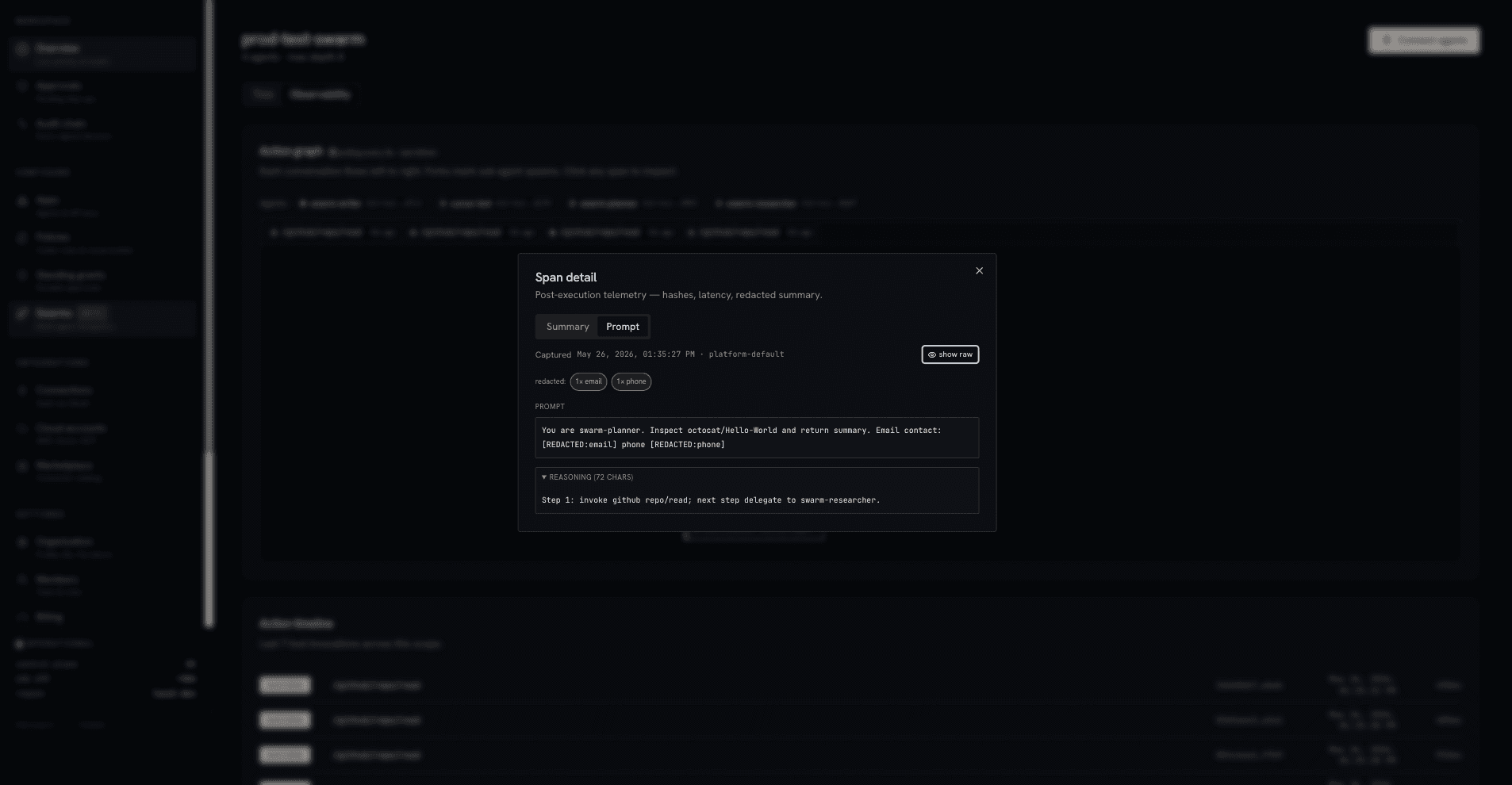

The Prompt tab captures the agent's prompt and reasoning. PII is redacted by default — emails and phone numbers are detected and replaced with [REDACTED:email] / [REDACTED:phone], with a count pill for each. The stored, shareable view is the redacted one.

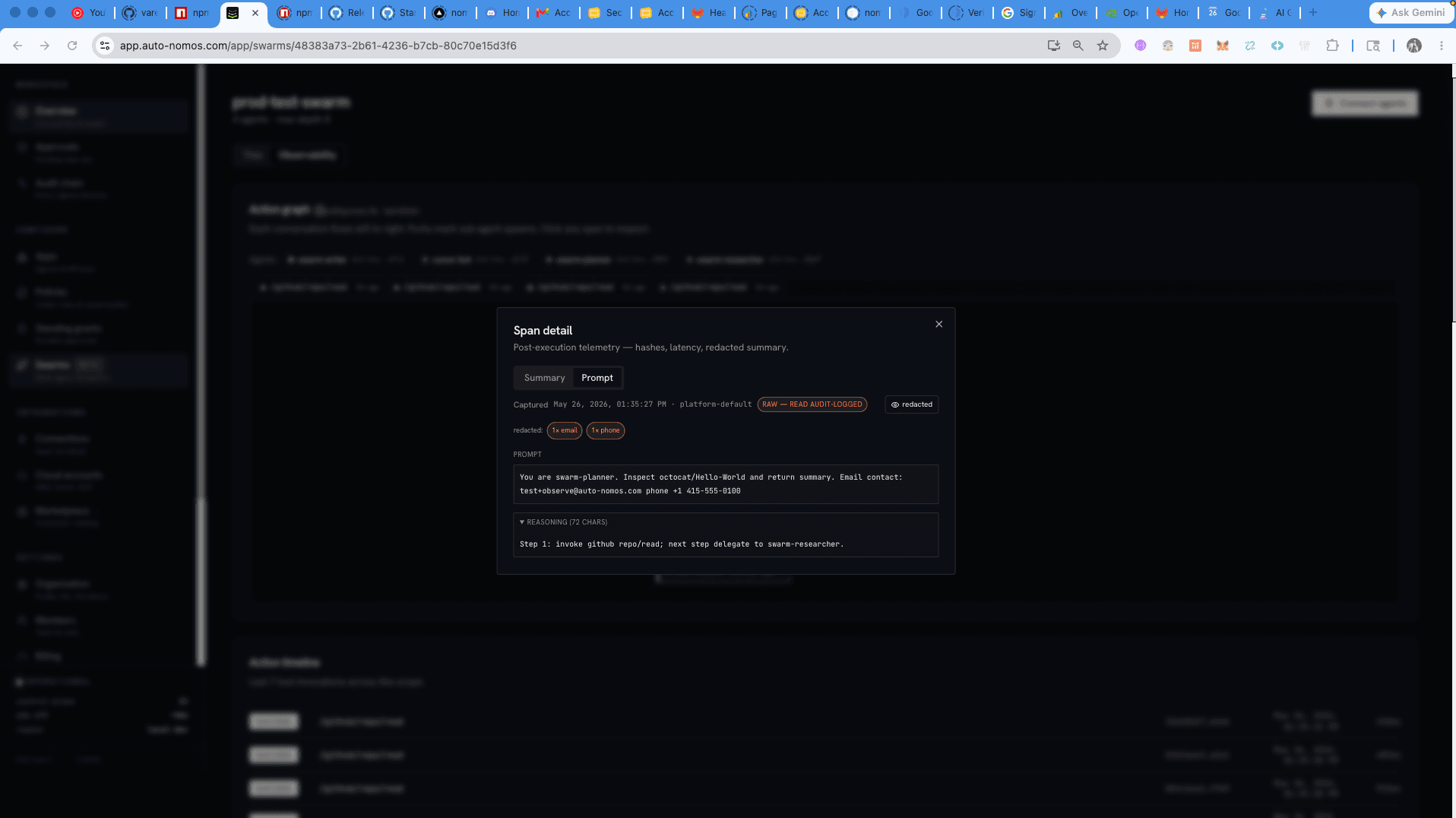

Show raw reveals the original — and that reveal is itself audit-logged (RAW — READ AUDIT-LOGGED). Looking at unredacted prompt data is a governed action, recorded like any other.

Action timeline

Below the graph, the Action timeline lists the last N tool invocations across the whole scope — each with its decision (SUCCESS / FAILURE), command, receipt id, timestamp, and latency. It's the flat, chronological companion to the graph.

Walking the audit tree

Every receipt carries parent_receipt_id. Recursively unwind any chain offline:

pnpm dlx @auto-nomos/audit-verify \
  --chain writerReceipt.json \
  --pubkey $AUDIT_VERIFY_KEY

# OK: 3 events, hash chain verified.
# ALLOW github://acme/app agent=planner   depth=0 id=8c1f…
# └── ALLOW github://acme/app agent=researcher depth=1 id=92ab…
#     └── STEPUP github://acme/app agent=writer depth=2 id=7fde…
